Product Name:

Hoymiles 2KW 4-in-1 Microinverter HMS-2000-4T

Contact us for more models!

Warrenty:

10 Years

Price:

Price does not include VAT.

Proceed to payment page to see the total price.

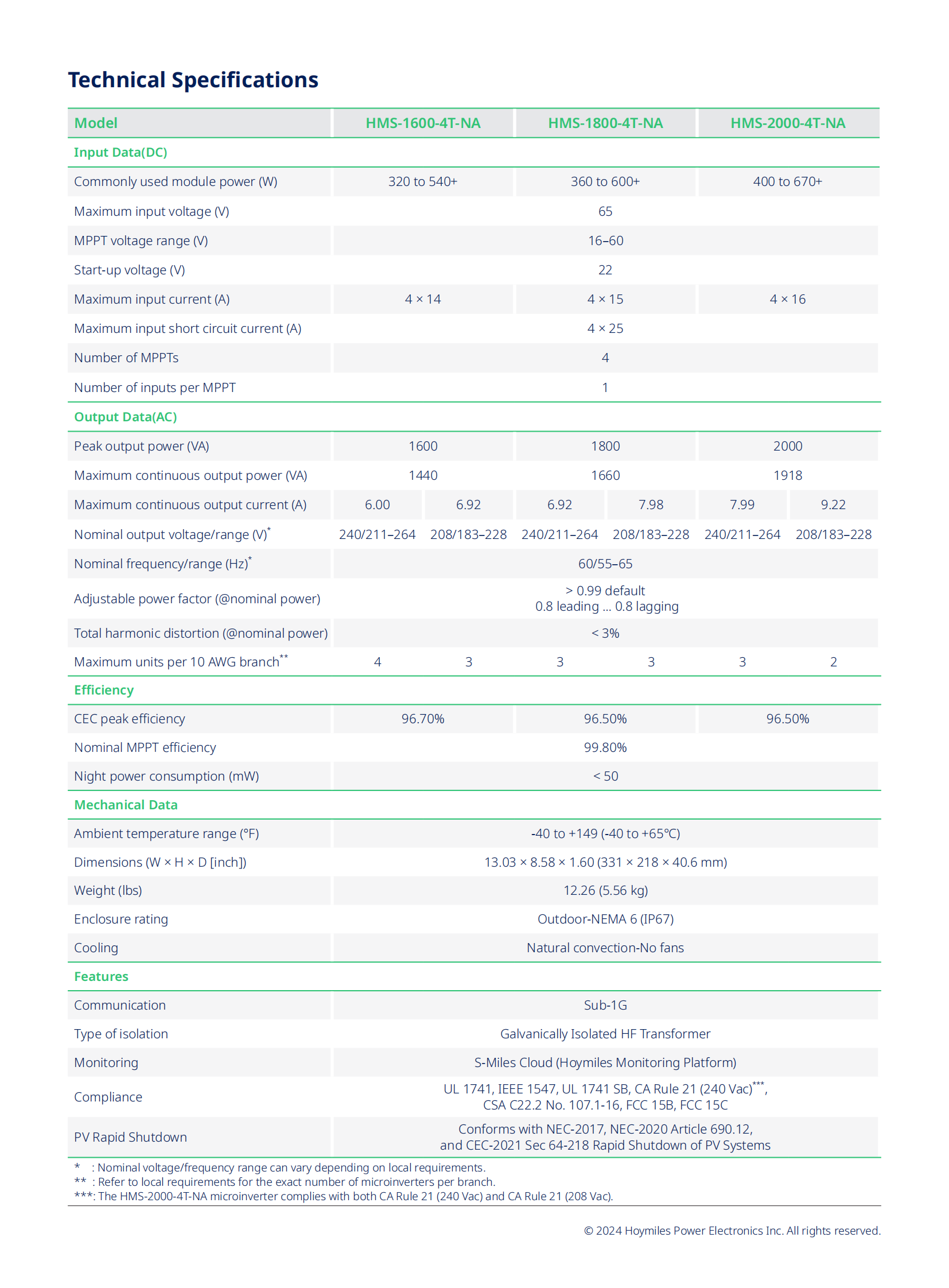

Key Specifications and Features:

- Rated Output Power (AC): The HMS-2000-4T has a rated AC output power of 2000 VA. This high power output allows it to be paired with high-powered solar panels.

- DC Input: Number of Inputs: 4 (one for each solar panel).

- Maximum Input Voltage (Vdc): 65 V. This low voltage is a key safety feature, as it reduces the risk of high-voltage shocks on the rooftop. It also makes the system compliant with "rapid shutdown" requirements.

- MPPTs: It features four independent MPPTs (Maximum Power Point Tracking). This means each connected solar panel is optimized individually, maximizing energy harvest even if one panel is shaded or underperforming.

- Recommended Module Power: The typical range for compatible solar panels is 400 W to 670 W+.

- Maximum Input Current: 4 x 16 A.

AC Output:

- Nominal Output Voltage: Typically 220V/400V (3-phase), with a nominal frequency of 50 Hz.

- Efficiency: It boasts a high efficiency, with a nominal MPPT efficiency of 99.8% and a CEC peak efficiency of around 96.50%.

Design and Durability:

- Enclosure Rating: IP67 (NEMA 6). This means the microinverter is completely protected against dust and can withstand being submerged in water up to 1 meter for 30 minutes, making it highly durable for outdoor installation.

- Cooling: It uses natural convection for cooling, so there are no fans. This contributes to its silent operation and long lifespan, as there are no moving parts to wear out.

- Operating Temperature Range: A wide range from -40°C to +65°C.

Communication and Monitoring:

- Communication: It uses a wireless Sub-1G solution, which provides stable communication with a Hoymiles gateway (DTU-Pro-S or DTU-Lite-S).

- Monitoring: The microinverter is integrated with the S-Miles Cloud, Hoymiles' monitoring platform, allowing users to track the real-time performance of each individual solar panel.

Safety and Features:

- Rapid Shutdown: Compliant with international standards for rapid shutdown, which quickly de-energizes the solar panels in an emergency.

- Galvanically Isolated: It has a built-in isolated transformer, enhancing the safety of the system.

- Reactive Power Control: It can control reactive power, which helps it meet grid requirements and maintain a stable power factor.
